h07v-r/ h07v-u use in house wiring system bare copper wire fire-resistant PVC

FOB Reference Price:Get Latest Price
$0.13 - $0.90 / Meters | 2000 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 30000 Meters)
Customized packaging (Min. Order: 30000 Meters)

More

Graphic customization (Min. Order: 30000 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LX
Model Number:
h07v-r h07v-u
Type:
Insulated
Application:
house wiring system
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
PVC
Conductor:
Copper Core
Insulation:
pvc
conductor material:
bare copper
flame retardant:
IEC 60332-1
Color:
Black
Standard:
EN 50267
max temperature:
90 °C
Product name:
Copper Core PVC Insulation Wire
Certification:
ROHS
package:
100meters one roll
Supply Ability
Supply Ability:
10000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
typical package without reel 100 meters per roll
Port
Any Guangzhou port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 7 To be negotiated
Related Products
Product Description



Application

These cables are designed for the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts. Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90o C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

H05Z-K/H07Z-K Low Voltage Flexible LSOH Electrical Cable and Wires acc. to EN 50267

conductor material: bare copper

conductor construction: Strands to VDE-0295 Class-5, IEC 60228 Class-5 BS 6360 cl. 5, HD 383
insulation: Cross-link polyolefin EI5 core
flame retardant: IEC 60332-1
maximum temperature :  90 °C
Flexing temperature: -15°C  to +90 °C

Static temperature: -40°C  to +90 °C

Insulation resistance: 10 MΩ x km

                                        Smoke density acc. to EN 50268 / IEC 61034

                                         Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2


Standard and Approval

<HAR> HD 22.9 S2

VDE-0282 Part-9

BS 7211

IEC 60754-2

EN 50267

VDE 0482-267

CE Low Voltage Directive 73/23/EEC and 93/68/EEC

ROHS compliant

Cable Parameter

AWG
No. of Cores x Nominal Cross Sectional Area
Nominal Thickness of Insulation
Nominal Overall Diameter
Nominal Copper Weight

Nominal Weight
[# x mm^2]
[mm]
[mm]
[kg/km]
[kg/km]
                                                                                             H05Z-K
20(16/32)
1 x 0.5
0.6
2.3
4.8
9
18(24/32)
1 x 0.75
0.6
2.5
7.2
12.4
17(32/32)
1 x 1
0.6
2.6
9.6
15
                                                                                             H07Z-K
16(30/30)
1 x 1.5
0,7
3.5
14.4
24
14(50/30)
1 x 2.5
0,8
4
24
35
12(56/28)
1 x 4
0,8
4.8
38
51
10(84/28)
1 x 6
0,8
6
58
71
8(80/26)
1 x 10
1,0
6.7
96
118
6(128/26)
1 x 16
1,0
8.2
154
180
4(200/26)
1 x 25
1,2
10.2
240
278
Quality & Service

Quality & Service
Our goal is to provide electrical wire and cable solution to our customers to achieve win-win situation.

1.Quality control
Strictly follows relevant standard. We guarantee that all products are using brand new and high quality raw material. They are from the best raw material suppliers who have passed our strict and specified testing process.


2. After-sale service
We can provide cable fixation, installation and testing suggestion and help if customer need. if big project problem, technicians can be sent to give instructions to the customers.

3.Sample Charge
When you place the normal order for electrical cable wire , the sample fee can be returned to you as support.

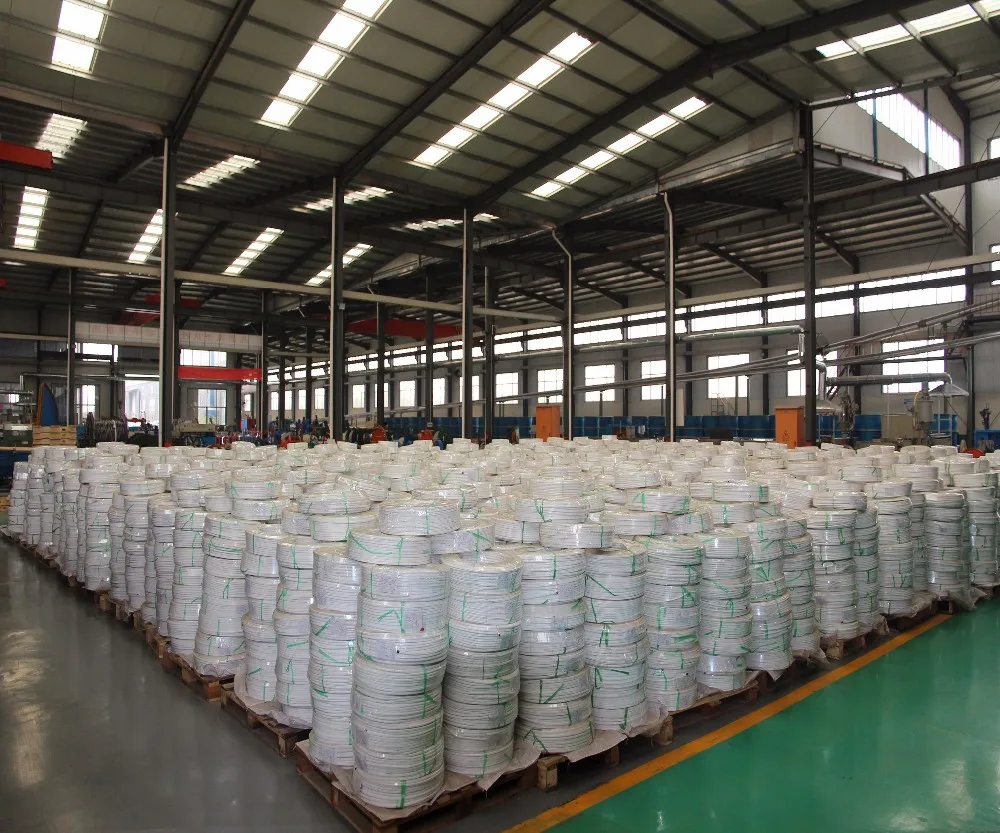

Packing & Delivery
Our Company

GUANGDONG LX WIRE AND CABLE CO.LTD is one of the leading wire and cable suppliers in China, who dedicates itself in manufacturing and distributing wire and cable for more than 18 years. To meet requirements from both domestic and oversea market, we have developed varieties of cable products to cover most application fields. Our key products include construction electric wires, low-smoke zero halogen cable, submarine cable , communication cable and wires, power cable series with voltage up to 35kV etc.

From year 2013, we start our own oversea sales division to expand oversea market. With outstanding R&D ability, superb quality control system, distinguished sales team and excellent service, our products have been well accepted by over 30 countries' customers around the world. At the same time, our sales in domestic market keeps growing.
